LED Tri-proof Light

1. Length: 1ft, 2ft, 3ft, 4ft, 5ft, 6ft, 8ft
2. Wattages: 20w, 30w, 40w, 60w, 80w, 90w, 120w
3. CCT: 3000k, 4000k, 5000k, 5700k, 6000k, 6500k
4. Main Material: Aluminum + PC
5. Input Voltage: AC100-277V, AC100-240V, 50/60HZ
6. Certificate: UL, cUL, ETL, cETL, TUV, SAA, CE
7. Supply Ability: 50,000pcs/month
8. Payment Terms: T/T, Paypal

Product Description

●  Product  Description

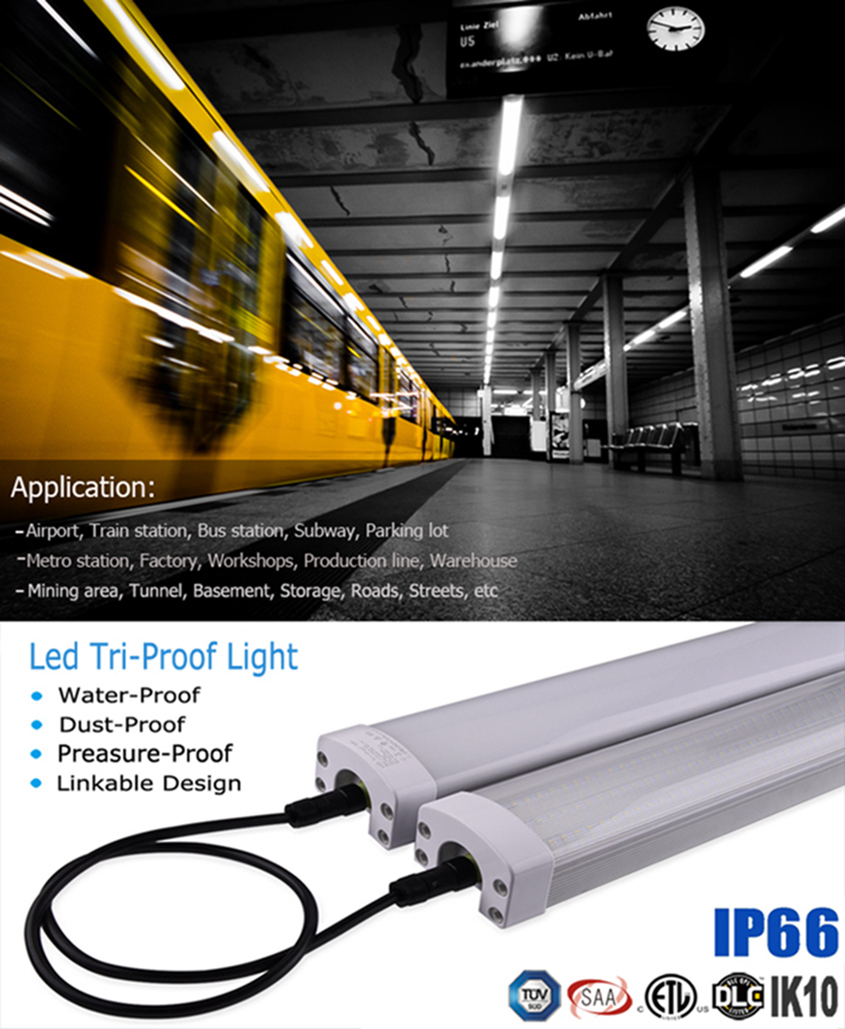

Led tri proof light are the heavy-duty, super-bright alternative to traditional tube and strip light fixtures. They are dust tight as well as water and impact resistant for use in harsh environments. Mount on a wall with included hardware or suspend from ceilings with a suspension kit. It's perfect for commercial lighting, warehouse lighting, parking garage lighting, supermarket lighting, Awning Back lighting Under canopy and more.

  Technical Specifications
  Input Voltage   AC100-277V  50/60Hz
  Total harmonic distortion   THD<19%
  Power Factor   PF>0.95
  Efficiency   110-130LM/W
  Color Index   Ra>82
  Switching Time   100,000
  Lumen maintenance @6000h   >80%
  Operation Temperature   -10°C ~ +50°C
  UGR   <19
  IP Rating   IP66
  CCT   3000K,4000K,5000K,6000K
  Material   Aluminum + PC

●  Features

●   IP66 water-proof, dust-proof, IK10 pressure-proof
●   Special design for multiple link
●   UL ETL TUV SAA CE approved, DLC Listed.
●   1.3mm aluminum for excellent heat dissipation
●   Cooler-proof with special materials for cover
●   Easy replacement and installation with brackets

●  Applications

●   Airport, Train station, Subway, Parking lot
●   Factory, Workshops, Production line, Warehouse
●   Tunnel, Basement, Storage, Roads etc

 Model  Length  Power  Led type  Lumens (lm) ±10%  Package
 LY-SF90L300-20W  1ft/300mm  20W  SMD2835  2200 - 2600  550*205*220 (mm)   6pcs/ctn
 LY-SF90L600-30W  2ft/600mm  30W  SMD2835  3300 - 3900  880*205*220 (mm)   6pcs/ctn
 LY-SF90L900-40W  3ft/900mm  40W  SMD2835  4400 - 5200  1150*205*220 (mm)   6pcs/ctn
 LY-SF90L1200-40W  4ft/1200mm  40W  SMD2835  4400 - 5200  1450*205*220 (mm)   6pcs/ctn
 LY-SF90L1200-60W  4ft/1200mm  60W  SMD2835  6600 - 7800  1450*205*220 (mm)   6pcs/ctn
 LY-SF90L1500-80W  5ft/1500mm  80W  SMD2835  8800 - 10400  1750*205*220 (mm)   6pcs/ctn
 LY-SF90L1800-90W  6ft/1800mm  90W  SMD2835  9900 - 11700  2040*205*155 (mm)   4pcs/ctn
 LY-SF90L2400-120W  8ft/2400mm  120W  SMD2835  13200 - 15600  2650*110*155 (mm)   2pcs/ctn

●  Options

●   Installation method: Surface Mounted, Suspending

●   Installation accessories: Standard Clip included / Suspending Kit (Sold separably) / Junction Box kits (Sold separably)

●  Product Line Drawing (Size:mm)                         ●  Light Distribution Curve

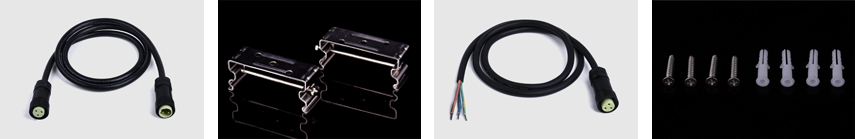

●  Standard Accessories

One 250mm power cord, one 250mm connection cable, one small connector, clips and screws...
(Length for power cord or connection cable can be customized)

●  Installation

●   To avoid electric shock, maintenance and installation should only be carried out by a professional electrician
●   Please use it under correct input power range
●   Before installation, turn off the power to make sure safety
●   Follow the diagram for below for proper installation
