Welcome to LONYUNG Led Lighting Co.,Ltd.
Plastic LED Tri-proof Light
  • Plastic LED Tri-proof Light
  • 全塑三防灯-1
  • 全塑三防灯-3
  • 全塑三防灯-4
  • 全塑三防灯-5
  • 全塑三防灯-6
  • Plastic LED Tri-proof Light
  • 全塑三防灯-1
  • 全塑三防灯-3
  • 全塑三防灯-4
  • 全塑三防灯-5
  • 全塑三防灯-6
Plastic LED Tri-proof Light

1. Length: 2ft, 3ft, 4ft, 5ft
2. Wattage: 20w, 30w, 40w, 50w
3. CCT; 3000k, 4000k, 5000k, 6000k, 6500k
4. Cover: Frosted PC Cover
5. Main Material: Full Plastic
6. Input Voltage: AC100-277V, AC100-240V, 50/60HZ
7. Certificate: UL, TUV, SAA, CE, Rohs
8. Supply Ability: 50,000pcs/month
9. Payment Terms: T/T, Paypal

Product Description






●  Product  Description

The mini Tri-proof light is connectable design and IP65 waterproof and dustproof. It can replace traditional triproof lights and is widely used in underground parking lots, subway stations, airports, ports, factories, underground tunnels and other humid environments.



  Technical Specifications
  Input Voltage   AC100-277V  50/60Hz
  Total harmonic distortion   THD<19%
  Power Factor   PF>0.95
  Efficiency   110-130LM/W
  Color Index   Ra>82
  Switching Time   100,000
  Lumen maintenance @6000h   >80%
  Operation Temperature   -10°C ~ +50°C
  UGR   <19
  IP Rating   IP66
  CCT   3000K,4000K,5000K,6000K
  Material   PC


















●  Features

●   Integrated molding design,IP66 water-proof, dust-proof, corrosion-proof
●   UL, TUV, SAA, CE approved
●   Whole plastic design for more affordable
●   Plastic insulation, high safety performance
●   Connectable and non connectable options,also DIY
●   Heat protection system, with excellent internal driver
●   Easy replacement & installation with brackets



●  Applications

●   Replaces fluorescent NCF fittings
●   Warehouses, factories & food storage
●   Car parks & sports facilities,Kitchens
●   Mining area,Steel plant,Tunnel, Basement etc
●   Specially used in Wet  Environments






Specifications
 Model  Length  Power  Led type  Lumens (lm) ±10%  Package
 LY-SF90L600-20WP  2ft/600mm  20W  SMD2835  2200 - 2400  800*300*150 (mm)   6pcs/ctn
 LY-SF90L900-30WP  3ft/900mm  30W  SMD2835  3300 - 3600  1070*300*150 (mm)   6pcs/ctn
 LY-SF90L1200-40WP  4ft/1200mm  40W  SMD2835  4400 - 4800  1370*300*150 (mm)   6pcs/ctn
 LY-SF90L1500-50WP  5ft/1500mm  50W  SMD2835  5500 - 6000  1670*300*150 (mm)   6pcs/ctn


●  Options

●   Connection way options: Non-linkable / Linkable



●  Product Line Drawing (Size:mm)                         ●  Light Distribution Curve

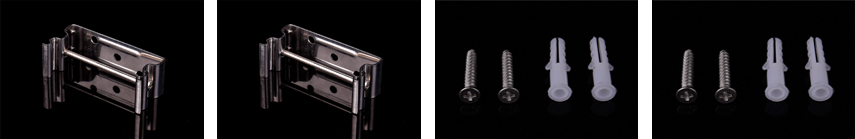

●  Standard Accessories

clips and screws...




●  Installation

●   To avoid electric shock, maintenance and installation should only be carried out by a professional electrician
●   Please use it under correct input power range
●   Before installation, turn off the power to make sure safety
●   Follow the diagram for below for proper installation
