Plastic T8 Integrated light

1. Length: 2ft, 3ft, 4ft, 5ft
2. Wattages: 9w, 13w, 15, 18w, 22w,
3. CCT: 3000k, 4000k, 5000k, 6000k, 6500k
4. Cover: Frosted or Clear
5. Main Material: Full Plastic
6. Input Voltage: AC100-277V, AC100-240V, 50/60HZ
7. Certificate: UL, TUV, CE, RoHs
8. Supply Ability: 50,000pcs/month
9. Payment Terms: T/T, Paypal

Product Description






●  Product  Description

Plastic T8 integrated lamp, high quality plastic housing, realize IP66 waterproof rating. The high-efficiency light engine for long life and excellent color to ensure the quality of the lighting. The DIY connection is designed to connected cables of different length.



  Technical Specifications
  Input Voltage   AC100-277V  50/60Hz
  Total harmonic distortion   THD<19%
  Power Factor   PF>0.95
  Efficiency   100-120LM/W
  Color Index   Ra>82
  Switching Time   100,000
  Lumen maintenance @6000h   >80%
  Operation Temperature   -10°C ~ +50°C
  UGR   <19
  IP Rating   IP66
  CCT   3000K,4000K,5000K,6000K
  Material   PC


















●  Features

●   Integrated molding design,IP66 water-proof and dust-proof
●   UL, TUV, SAA, CE approved
●   Full Plastic housing design, high safety performance
●   180°big beam angle
●   Easy replacement & installation with brackets
●   Connectable and non connectable options,also DIY



●  Applications

●   Refrigerator, fridge, icebox, cooler
●   Supermarkets, hotels, restaurants,
●   Workshops, storeroom, aquarium, etc






Specifications
 Model  Length  Power  Led type  Lumens (lm) ±10%  Package
 LY-T8DL600-9WP  2ft/600mm  9W  SMD2835  900 - 990  735*235*190 (mm)   20pcs/ctn
 LY-T8DL900-13WP  3ft/900mm  13W  SMD2835  1300 - 1430  1045*235*190 (mm)   20pcs/ctn
 LY-T8DL1200-15WP  4ft/1200mm  15W  SMD2835  1500 - 1650  1345*235*190 (mm)   20pcs/ctn
 LY-T8DL1200-18WP  4ft/1200mm  18W  SMD2835  1800 - 1980  1345*235*190 (mm)   20pcs/ctn
 LY-T8DL1500-22WP  5ft/1500mm  22W  SMD2835  2200 - 2420  1645*235*155 (mm)   16pcs/ctn


●  Options

●   Version: Standard Versionl / Triac Dimmable
●   Connection way options: Non-linkable / Linkable

●   Cover: Milky / Clear



●  Product Line Drawing (Size:mm)                         ●  Light Distribution Curve

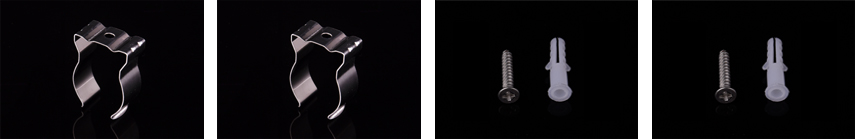

●  Standard Accessories

clips and screws...




●  Installation

●   To avoid electric shock, maintenance and installation should only be carried out by a professional electrician
●   Please use it under correct input power range
●   Before installation, turn off the power to make sure safety
●   Follow the diagram for below for proper installation
