LED Linear High Bay Fixture

1. Size: 1*2ft, 2*2ft, 1*4ft, 2*4ft
2. Wattages: 80w, 100w, 165w, 200w, 320w
3. CCT: 4000K, 5000K, 5700K
4. Cover: Clear Acrylic Lens
5. Main Materials: Aluminum + Acrylic Lens
6. Input Voltage: AC120-277V 60Hz
7. Certification: ETL, cETL, CE, Rohs
8. Supply Ability: 20000PCS/Month
9. Payment Terms: T/T, Paypal

Product Description






●  Product  Description

Long lasting LEDs, coupled with high-efficiency driver, provide superior quantity and quality of illumination for extended hours of life. This fixture delivers LM80 performance for more than 50,000 hours.



  Technical Specifications
  Input Voltage   AC100-277V  50/60Hz
  Total harmonic distortion   THD<19%
  Power Factor   PF>0.95
  Efficiency   120-150LM/W
  Color Index   Ra>82
  Switching Time   100,000
  Lumen maintenance @6000h   >80%
  Operation Temperature   -10°C ~ +50°C
  UGR   <19
  IP Rating   IP65
  CCT   2700K - 6500K
  Material   Aluminum + PC


















●  Features

●   IP65 water-proof & dust-proof
●   Long lasting LEDs, coupled with high-efficiency driver
●   Big Lights Source Design
●   0-10v Dimmable
●   UL TUV SAA approved, DLC Premium Listed
●   MEANWELL Internal driver
●   Replacement HID,T8 or T5 fluorescent of 15' to 45' ceilings
●   Housing material: Aluminum Body for great heat sink
●   Easy replacement and installation with brackets



●  Applications

●   Warehouses, factories & food storage
●   Car parks & sports facilities, gas station
●   Shipping centers,hospitals, universities etc
●   Specially used in some indoor/outdoor wet place environments






Specifications
 Model  Length  Power  Led type  Lumens (lm) ±10%  Package
 LY-HB300L600-80WP  1×2ft  80W  SMD3030  10800  650*430*250 (mm)   2pcs/ctn
 LY-HB300L600-100WP  1×2ft  100W  SMD3030  13500  650*430*250 (mm)   2pcs/ctn
 LY-HB300L1200-165WP  1×4ft  165W  SMD3030  22275  1210*425*250 (mm)   2pcs/ctn
 LY-HB600L600-200WP  2×2ft  200W  SMD3030  27000  640*660x*230 (mm)   2pcs/ctn
 LY-HB600L1200-320WP  2×4ft  320W  SMD3030  43200  1210*660*220 (mm)   2pcs/ctn


●  Options

●   Installation Type: Standard Suspending Kits / Surface mounted

●   Dimming : 0-10v Dimmable / External Motion Sensor

●   Cover Options: Without cover / Clear PC cover / Prism Cover




●  Product Line Drawing (Size:mm)                         ●  Light Distribution Curve





●  Standard Accessories

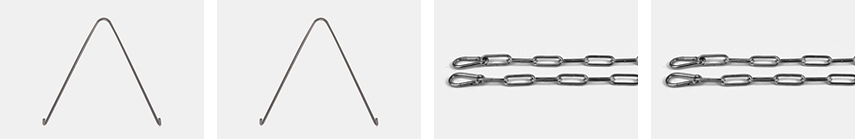

Suspending kits




●  Installation

●   To avoid electric shock, maintenance and installation should only be carried out by a professional electrician
●   Please use it under correct input power range
●   Do not use in the outdoor environment
●   Before installation, turn off the power to make sure safety
●   Follow the diagram for below for proper installation
