0-10V Dimming T8 LED Integrated Tube

1. Size: 1ft 2ft 3ft 4ft 5ft 8ft
2. Wattages: 4w 9w 13w 18w 22w 25w 44w
3. CCT: 3000K 4000K 5000K 6000K 6500K
4. Cover: Frosted or Clear
5. Main Materials: Aluminum + PC
6. Input Voltage: AC100-277V / AC100-240V  50/60Hz
7. Certifications: UL ETL TUV SAA CE C-tick
8. Supply Ability: 50000PCS/Month
9. Payment Terms: T/T, Paypal

Product Description






●  Product  Description

T8 LED integrated light is an Integrated design for indoor applications. The high-efficacy light engine delivers long life and excellent color, ensuring a superior quality lighting. They can be seamlessly connected to optional cables or connectors.



  Technical Specifications
  Input Voltage   AC100-277V  50/60Hz
  Total harmonic distortion   THD<19%
  Power Factor   PF>0.95
  Efficiency   110-130LM/W
  Color Index   Ra>82
  Switching Time   100,000
  Lumen maintenance @6000h   >80%
  Operation Temperature   -10°C ~ +50°C
  UGR   <19
  Life Span   50,000 hours
  CCT   3000K,4000K,5000K,6000K
  Material   Aluminum + PC


















●  Features

●   Patent Male-female linkable design
●   Seamless & No Dark in-line connection
●   UL ETL TUV SAA CE approved, DLC Listed
●   Maximum tandem wattage: 200W and 600W optional
●   0.8mm aluminum housing for excellent heat dissipation
●   Heat protection system,with excellent internal driver
●   Enjoy Hassle-free, safe and easy Installation



●  Applications

●   Replaces t8 fluorescent fixtures
●   Warehouses, factories & food storage
●   Car parks & sports facilities, Kitchens
●   Supermarkets,Office,Hotel,shopping malls etc






Specifications
 Model  Length  Power  Led type  Lumens (lm) ±10%  Package
 LY-T8DL600-9W  2ft/600mm  9W  SMD2835  990 - 1080  725*240*205 (mm)   20pcs/ctn
 LY-T8DL900-13W  3ft/900mm  13W  SMD2835  1430 - 1560  1035*240*205 (mm)   20pcs/ctn
 LY-T8DL1200-18W  4ft/1200mm  18W  SMD2835  1980 - 2160  1335*240*205 (mm)   20pcs/ctn
 LY-T8DL1200-22W  4ft/1200mm  22W  SMD2835  2420 - 2640  1335*240*205 (mm)   20pcs/ctn
 LY-T8DL1500-25W  5ft/1500mm  25W  SMD2835  2750 - 3000  1640*240*205 (mm)   20pcs/ctn
 LY-T8DL1800-28W  6ft/1800mm  28W  SMD2835  3080 - 3360  1900*240*205 (mm)   20pcs/ctn
 LY-T8DL2400-44W  8ft/2400mm  44W  SMD2835  4840 - 5280  2510*150*166 (mm)   9pcs/ctn


●  Options

●   Fuctions: Standard Version / Triac Dimmable Version /  ON-OFF Swith
●   Connection Way: Lead in wire / M-F Connection / Power cord with Plug
●   Installation Type : Standard Clip / Magnetic Clip / Suspending Kits
●   Cover: Milky / Clear



●  Product Line Drawing (Size:mm)                         ●  Light Distribution Curve

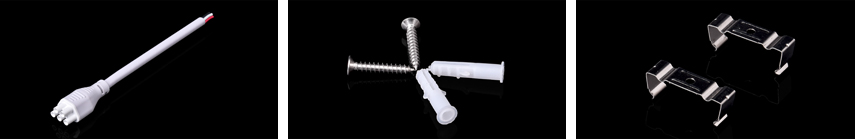

●  Standard Accessories

One 250mm power cord, one 250mm connection cable, one small connector, clips and screws...
(Length for power cord or connection cable can be customized)




●  Installation

●   To avoid electric shock, maintenance and installation should only be carried out by a professional electrician
●   Please use it under correct input power range
●   Do not use in the outdoor environment
●   Before installation, turn off the power to make sure safety
●   Follow the diagram for below for proper installation
