● Product Description
Linear led Trunking system is a continuous run of integrated lighting Linear system,100% seamless connection without dark spot while units linked together. LINK UP to 2000W on one power source to make continue rows of light. With the Easy plug & play installation design, The fixture can lower cost of installation and maintenance.
Technical Specifications
Input Voltage
AC100-277V 50/60Hz
Total harmonic distortion
THD<19%
Power Factor
PF>0.95
Efficiency
150LM/W
Color Index
Ra>82
Switching Time
100,000
Lumen maintenance @6000h
>80%
Operation Temperature
-15°C ~ +50°C
UGR
<19
Life Span
50,000 hours
CCT
3000K,4000K,5000K,6000K
Material
Aluminum + PC
● Features
● 2000watt Connection in one source
● Easy Installation
● Seamless in-line connection
● ETL TUV CE SAA approved
● 0.8mm aluminum housing for excellent heat dissipation
● Heat protection system,with excellent internal driver
● Universal mounting standard. Come with integral hanging loops and with standard surface mounting application
● Applications
● Replaces T8/T12 fluorescent fittings
● Warehouses, factories & food storage
● Supermarket, shopping malls, Office
● Home, Hotel, Parking lot, garage etc
| Specifications | |||||
| Model | Length | Power | Led type | Lumens (lm) ±10% | Package |
| LY-LS70L600-25W | 2ft/600mm | 25W | SMD2835 | 3750 | 735*235*190 (mm) 20pcs/ctn |
| LY-LS70L600-30W | 2ft/600mm | 30W | SMD2835 | 4500 | 1045*235*190 (mm) 20pcs/ctn |
| LY-LS70L900-36W | 3ft/900mm | 36W | SMD2835 | 5400 | 1345*235*190 (mm) 20pcs/ctn |
| LY-LS70L1200-48W | 4ft/1200mm | 48W | SMD2835 | 7200 | 1345*235*190 (mm) 20pcs/ctn |
| LY-LS70L1200-60W | 4ft/1200mm | 60W | SMD2835 | 9000 | 1645*235*155 (mm) 16pcs/ctn |
| LY-LS70L1500-60W | 5ft/1500mm | 60W | SMD2835 | 9000 | 1915*235*155 (mm) 16pcs/ctn |
| LY-LS70L1500-75W | 5ft/1500mm | 75W | SMD2835 | 11250 | 2520*180*120 (mm) 9pcs/ctn |
● Options
● Fuctions: Standard Version / 0-10V Dimmable
● Connection Way: Lead in wire / M-F Connection / Power cord with Plug
● Installation Type : Standard Clip / Magnetic Clip / Suspending Kits
● Cover: frosted / Prismatic
● Product Line Drawing (Size:mm) ● Light Distribution Curve

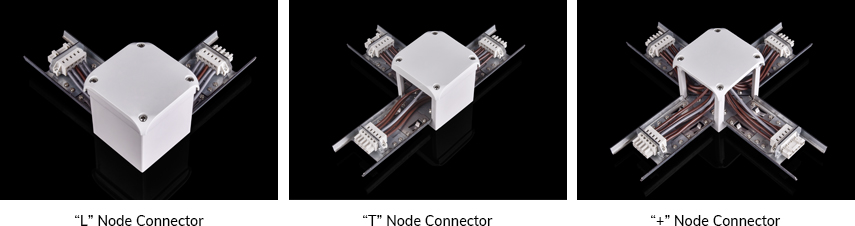

● Corner Options
'L' , 'T' and '+' shape can be customized
● Installation
● To avoid electric shock, maintenance and installation should only be carried out by a professional electrician
● Please use it under correct input power range
● Do not use in the outdoor environment
● Before installation, turn off the power to make sure safety
● Follow the diagram for below for proper installation
