Square T5 Integrated Tube

1. Size: 1ft 2ft 3ft 4ft
2. Wattages: 4w 7w 12w 15w 20w
3. CCT: 3000K 4000K 5000K 6000K 6500K
4. Main Materials: Aluminum + PC
5. Input Voltage: AC120V / AC180-240V 50/60Hz
6. Certifications: UETL TUV SAA
7. Supply Ability: 50000PCS/Month
8. Payment Terms: T/T, Paypal


Product Description



●  Product  Description

Square T5 Integrated Tube provides task or accent lighting in commercial, retail, hospitality and residential applications. Ideal for use under and over cabinets, display cases, task lighting, office lighting, coves and utility/work areas. Our cabinet light provides high lumen output, smooth illumination and increase energy efficiency..



  Technical Specifications
  Input Voltage   AC100-277V  50/60Hz
  Total harmonic distortion   THD<19%
  Power Factor   PF>0.95
  Efficiency   110-130LM/W
  Color Index   Ra>82
  Switching Time   100,000
  Lumen maintenance @6000h   >80%
  Operation Temperature   -15°C ~ +50°C
  UGR   <19
  Life Span   50,000 hours
  CCT   3000K,4000K,5000K,6000K
  Material   Aluminum + PC

















●  Features

●   Integrated LED Design
●   Seamless Connection
●   Easy Installation
●   No Flicking, no dark shadows



●  Applications

●   Under Cabinet Lighting
●   Warehouses, factories & food storage
●   Supermarket, shopping malls, Office
●   Home, Hotel, Parking lot, garage etc






Specifications
 Model  Length  Power  Led type  Lumens (lm) ±10%  Package
 LY-T5FL300-4W  1ft/300mm  4W  SMD2835  440 - 520  340*315*295 (mm)   20pcs/ctn
 LY-T5FL600-7W  2ft/600mm  7W  SMD2835  770 - 910  630*315*295 (mm)   20pcs/ctn
 LY-T5FL900-12W  3ft/900mm  12W  SMD2835  1320 - 1560  940*315*295 (mm)   20pcs/ctn
 LY-T5FL1200-15W  4ft/1200mm  15W  SMD2835  1650 - 1950  1240*315*295 (mm)   20pcs/ctn
 LY-T5FL1200-20W  4ft/1200mm  20W  SMD2835  2200 - 2600  1240*315*295 (mm)   20pcs/ctn



●  Options

●   Fuctions: Triac Dimmable / ON-OFF Switch / CCT Tunable
●   Connection Way: Lead in wire / M-F Connection / Power cord with Plug
●   Installation Type : Standard Clip / Magnetic Clip / Suspending Kits

●   Cover: Milky / Clear



●  Product Line Drawing (Size:mm)                         ●  Light Distribution Curve

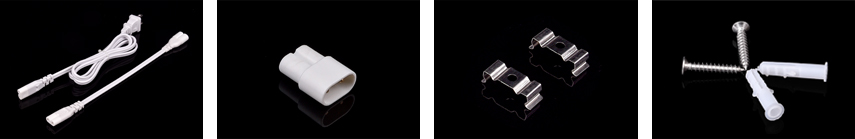

●  Standard Accessories

One 1200mm power cord with EU/AU/USA Plug, one 250mm connection cable, one small connector, clips and screws...
(Length for power cord or connection cable can be customized)




●  Installation

●   To avoid electric shock, maintenance and installation should only be carried out by a professional electrician
●   Please use it under correct input power range
●   Do not use in the outdoor environment
●   Before installation, turn off the power to make sure safety
●   Follow the diagram for below for proper installation
