● Product Description
LED batten light is an Integrated design for indoor applications. The high efficient light engine delivers long life and excellent color, ensuring a superior quality lighting. They can be connected to optional cables or connectors.
| Technical Specifications | |
| Input Voltage | AC100-277V 50/60Hz |
| Total harmonic distortion | THD<19% |
| Power Factor | PF>0.95 |
| Efficiency | 110-130LM/W |
| Color Index | Ra>82 |
| Switching Time | 100,000 |
| Lumen maintenance @6000h | >80% |
| Operation Temperature | -10°C ~ +50°C |
| UGR | <19 |
| Life Span | 50,000 hours |
| CCT | 3000K,4000K,5000K,6000K |
| Material | Aluminum + PC |
● Features
● Dust-proof, corrosion-proof
● Patent Male-female linkable design
● Seamless & No Dark in-line connection
● ETL TUV CE SAA approved
● 1.3mm aluminum for excellent heat dissipation
● Easy replacement and installation with bracket
● Applications
● Replaces fluorescent NCF fittings
● Warehouses, factories & food storage
● Car parks & sports facilities, Kitchens etc
| Specifications | |||||
| Model | Length | Power | Led type | Lumens (lm) ±10% | Package |
| LY-SF90L300-20W | 1ft/300mm | 20W | SMD2835 | 2200 - 2400 | 405*240*230 (mm) 6pcs/ctn |
| LY-SF90L600-30W | 2ft/600mm | 30W | SMD2835 | 3300 - 3600 | 735*240*230 (mm) 6pcs/ctn |
| LY-SF90L900-40W | 3ft/900mm | 40W | SMD2835 | 4400 - 4800 | 1005*240*230 (mm) 6pcs/ctn |
| LY-SF90L1200-40W | 4ft/1200mm | 40W | SMD2835 | 4400 - 4800 | 1305*240*230 (mm) 6pcs/ctn |
| LY-SF90L1200-60W | 4ft/1200mm | 60W | SMD2835 | 6600 - 7200 | 1305*240*230 (mm) 6pcs/ctn |
| LY-SF90L1500-80W | 5ft/1500mm | 80W | SMD2835 | 8800 - 9600 | 1605*240*230 (mm) 6pcs/ctn |
| LY-SF90L1800-90W | 6ft/1800mm | 90W | SMD2835 | 9900 - 10800 | 1895*125*160 (mm) 4pcs/ctn |
| LY-SF90L2400-90W | 8ft/2400mm | 90W | SMD2835 | 9900 - 10800 | 2505*125*160 (mm) 2pcs/ctn |
| LY-SF90L2400-120W | 8ft/2400mm | 120W | SMD2835 | 13200 - 14400 | 2505*125*160 (mm) 2pcs/ctn |
● Connection options: Lead in wire, M-F connection, Seamless connection
● Installation Types: Standard Clip / Suspending / Junction Box
● Product Line Drawing (Size:mm) ● Light Distribution Curve

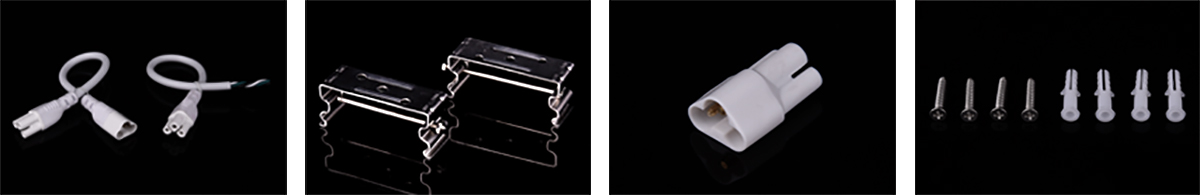

One 250mm power cord, one 250mm connection cable, one small connector, clips and screws...
(Length for power cord or connection cable can be customized)
● Installation
● To avoid electric shock, maintenance and installation should only be carried out by a professional electrician
● Please use it under correct input power range
● Do not use in the outdoor environment
● Before installation, turn off the power to make sure safety
● Follow the diagram for below for proper installation
