● Product Description

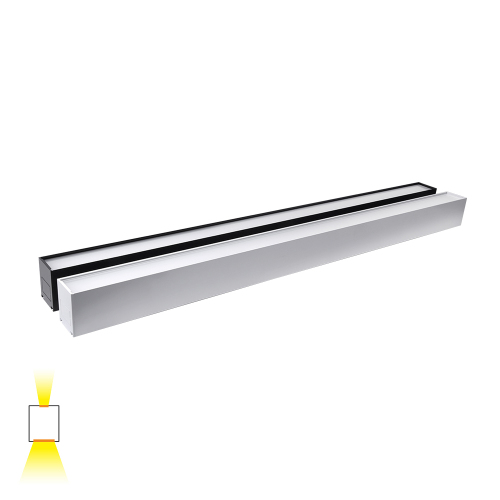

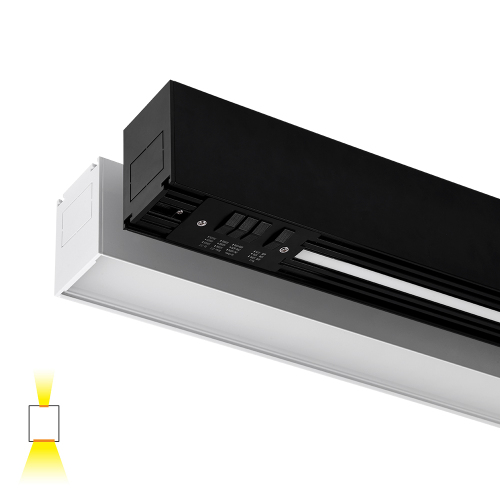

Direct & Indirect LED Linear Light is a specal linear lighting product provide both direct and indirect lights in targeted areas, which gives a perfect solution for office,subway station,super market and airport sectors.The pc cover has an excellent light transmittance,providing you softer and more uniform light.
| Technical Specifications | |
| Input Voltage | AC100-277V 50/60Hz |
| Total harmonic distortion | THD<19% |
| Power Factor | PF>0.95 |
| Efficiency | 100-130LM/W |
| Color Index | Ra>82 |
| Switching Time | 100,000 |
| Lumen maintenance @6000h | >80% |
| Operation Temperature | -10°C ~ +50°C |
| UGR | <19 |
| Life Span | 50,000 hours |
| CCT | 3000K,4000K,5000K |
| Material | Aluminum + PC |
● Features

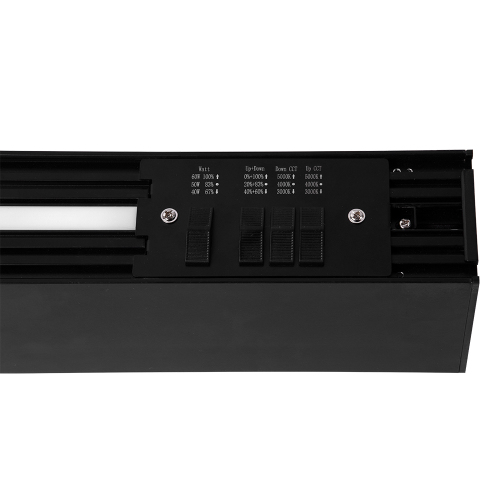

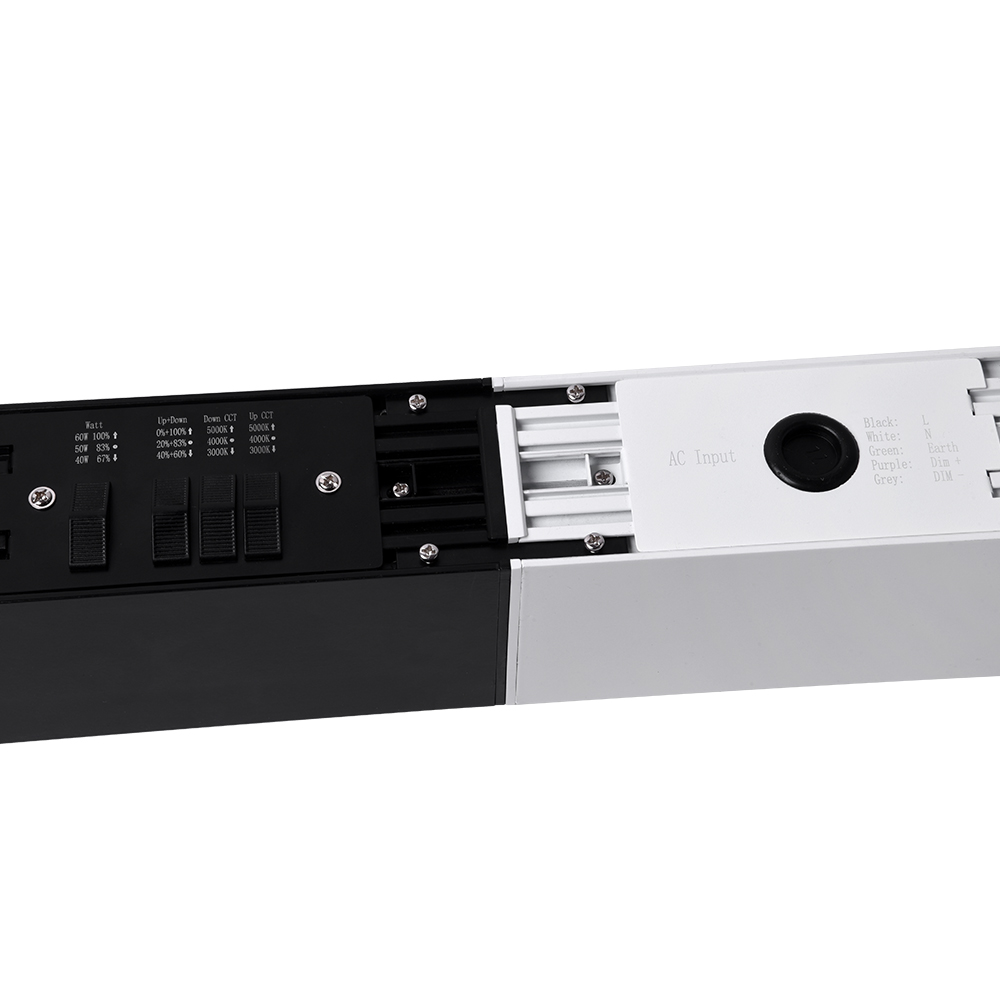

● A switch can be used to adjust the color temperature and power wattage.
● Made of recycled aluminum housing that is more Environmentally friendly than the other material housing.
● Specifiable color temperature.
● Integral specifiable dimmable drivers or PoE.
● WELL Building Standard compatible.
| Specifications | |||||
| Model | Length | Power | Led type | Lumens (lm) ±10% | Package |
| LY-SF90L600-30W6 | 2ft/600mm | 30W | SMD2835 | 3000/3750 | 700*215*245 (mm) 6pcs/ctn |
| LY-SF90L1200-60W6 | 4ft/1200mm | 60W | SMD2835 | 6000/7500 | 1300*215*245 (mm) 6pcs/ctn |
|
LY-SF90L1500-90W6
|
5ft/1500mm | 90W | SMD2835 |
8000/10000 | 1600*215*170 (mm) 4pcs/ctn |
| LY-SF90L2400-120W6 |
8ft/2400mm |
120W |
SMD2835 |
12000/15000 |
2500*115*170 (mm) 2pcs/ctn |
● Options
● Standard Version / High Bright Version

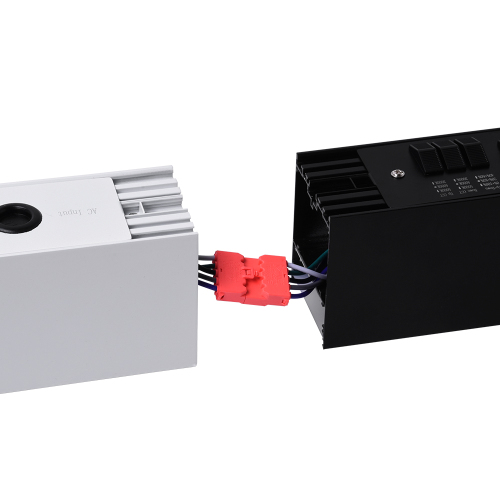

● Connection Way: Lead in Wire / M-F Connection / Power cord with Plug
● Installation Type : Standard Clip
● 3 CCT Tunable: 3000K 4000K 5000K
● Product Line Drawing (Size:mm) ● Light Distribution Curve
● Standard Accessories
Two hoisting line,two conncetion clips,clips and screws.
● Installation
● Risk Of Electrical Shock: Disconnect Power Before Installing Or Servicing Product.
● Installation should be performed by Licensed / Qualifified Electricians Only.
● Please use it under correct input power range.
● Do not use in the outdoor environment.
● If the product does not operate properly, check the wire connection after the power cut off.
● Follow the diagram for below for proper installation.
