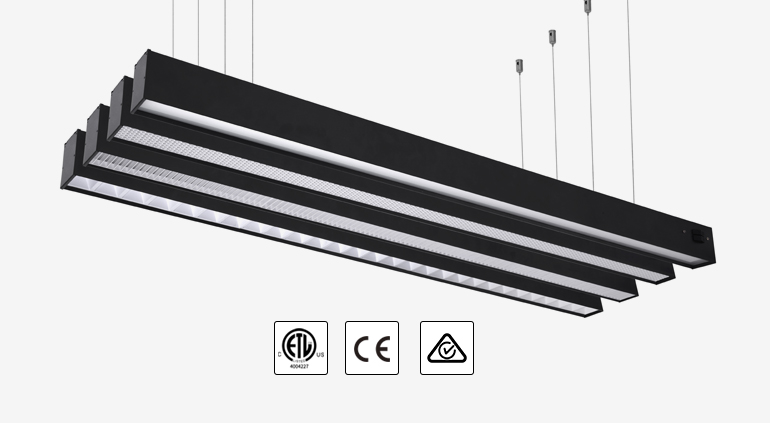

Frosted LED Linear Pendant Light

Item No.: 00159
1. Length: 2ft, 4ft, 5ft, 8ft
2. Wattage: 30w, 60w, 80w,120w
3. CCT: 3000k, 4000k, 5000k, 6000k
4. Main Material: PC + Aluminum
5. Voltage: AC100-277V/AC100-240V, 50/60HZ
6. Certificate: ETL,CE, RoHs, SAA
Description Review
Description



●  Product  Description

Frosted LED Linear Pendant Light is a specal linear lighting product provide bright lights in targeted areas, which gives a perfect solution for office,subway station,super market and airport sectors.The pc cover has an excellent light transmittance,providing you softer and more uniform light.

  Technical Specifications
  Input Voltage   AC100-277V  50/60Hz
  Total harmonic distortion   THD<19%
  Power Factor   PF>0.95
  Efficiency   100-130LM/W
  Color Index   Ra>82
  Switching Time   100,000
  Lumen maintenance @6000h   >80%
  Operation Temperature   -10°C ~ +50°C
  UGR   <19
  Life Span   50,000 hours
  CCT   3000K,4000K,5000K
  Finish   White or Black

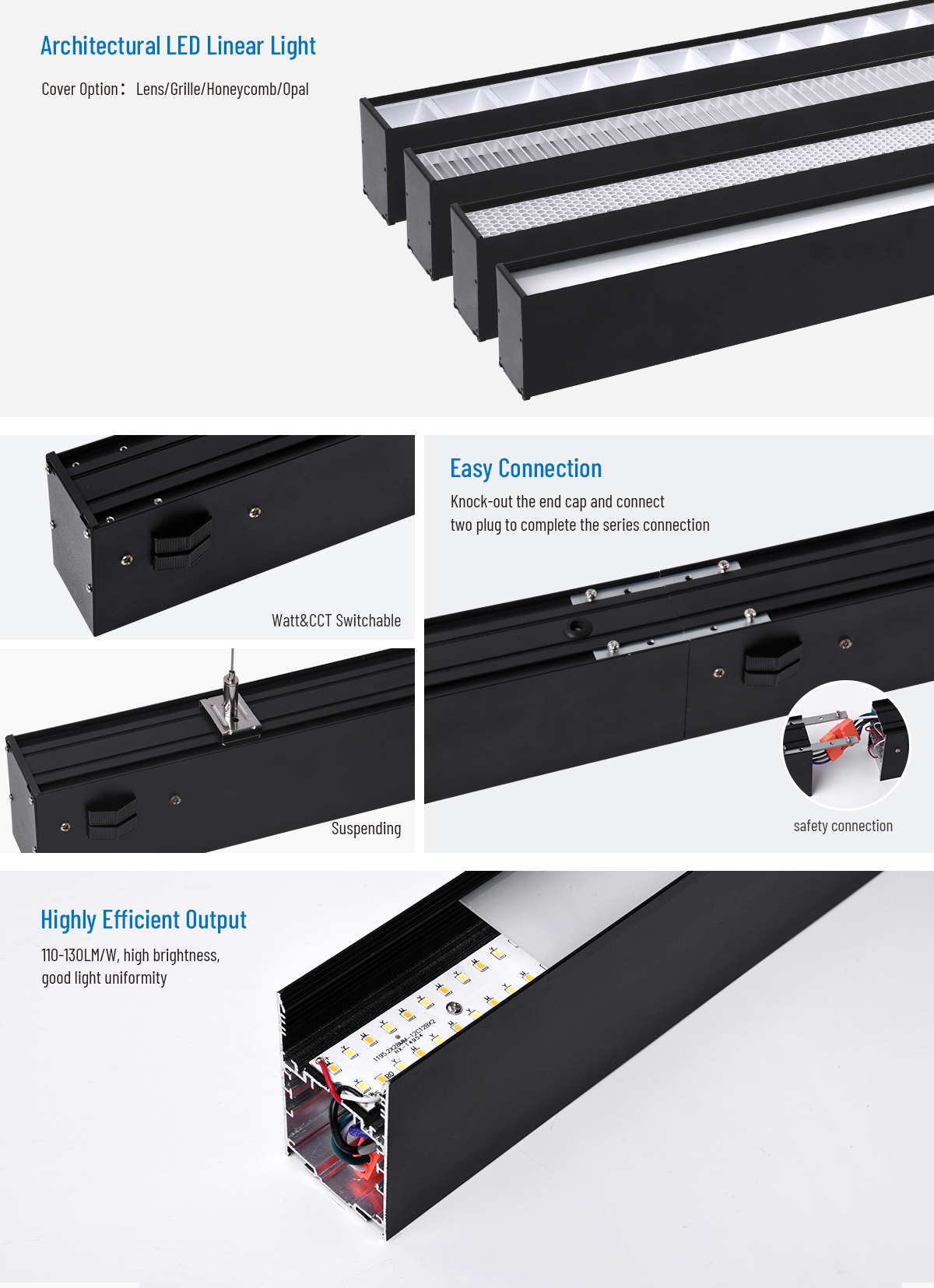

●  Features

● Switchable the color temperature and power wattage.

● Made of recycled aluminum housing with great heat sink.

● Specifiable color temperature.

● Integral specifiable dimmable drivers or PoE.

● WELL Building Standard compatible.





Specifications
 Model  Length  Power  Led type  Lumens (lm) ±10%  Package
 LY-SF90L600-30W6   2ft/600mm  30W  SMD2835  3000/3750   710*215*245 (mm)    6pcs/ctn
 LY-SF90L1200-40W6
  4ft/1200mm  60W  SMD2835  6000/7500  1310*215*245(mm)    6pcs/ctn
 LY-SF90L1500-80W6
  5ft/1500mm
 80W
 SMD2835
 8000/10000
 1610*215*170 (mm)   4pcs/ctn
 LY-SF90L2400-120W6
  8ft/2400mm
 120W
 SMD2835
 12000/15000
  2510*115*170 (mm)   2pcs/ctn


●  Options

●   Standard Version / High Bright Version
   Emergency lighting version/PIR sensor version
●   Installation Type : Standard Clip
●   3 CCT Tunable: 3000K 4000K 5000K or Single fixed CCT



●  Product Line Drawing
 (Size:mm)
●  Light Distribution Curve


●  Standard Accessories

Two hoisting line,two conncetion clips,clips and screws.


●  Installation

Risk Of Electrical Shock: Disconnect Power Before Installing Or Servicing Product.

Installation should be performed by Licensed / Qualifified Electricians Only.

Please use it under correct input power range.

Do not use in the outdoor environment.

If the product does not operate properly, check the wire connection after the power cut off.
Follow the diagram for below for proper installation
