● Product description
The T5 light bar is an integrated design for indoor applications. Highly efficient light engine with long lifespan and excellent color ensures excellent light quality. They can be seamlessly connected with optional cables or connectors.
| Technical specifications | |
| Input voltage | AC100-277V 50/60Hz |
| Total harmonic distortion | THD<19% |
| Power factor | PF>0.95 |
| Efficiency | 110-130LM/W |
| Color index | Ra>82 |
| switching time | 100,000 |
| Lumen maintenance @6000h | >80% |
| Operation Temperature | -10°C ~ +50°C |
| UGR | <19 |
| lifespan | 50.000 Stunden |

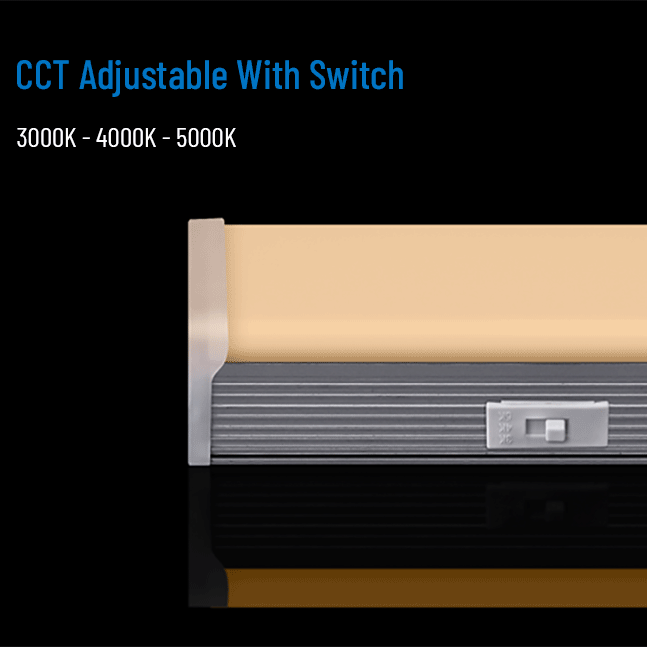

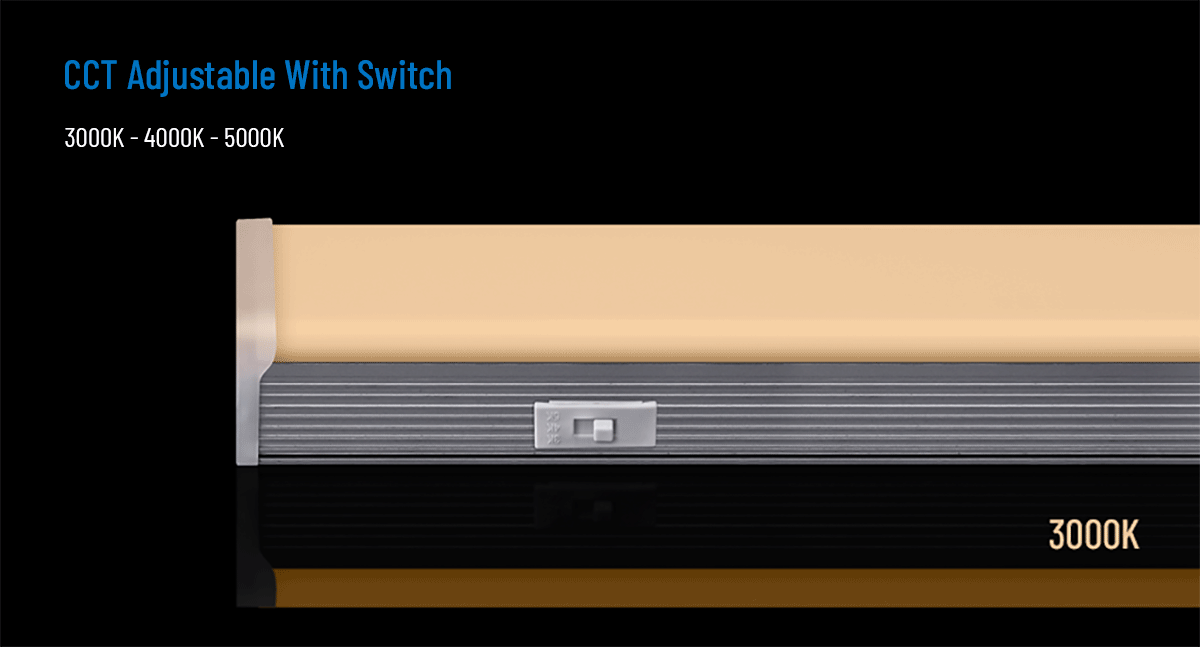

| CCT | 3000K,4000K,5000K,6000K |
| material | Aluminum + PC |
● Features
● Patented male-female connectable design
● Seamless & No Dark Inline Connection
● ETL TUV SAA approved, DLC listed
● Maximum tandem power: 200W and 600W optional
● 0.8mm thick aluminum housing for excellent heat dissipation
● Heat protection system with excellent internal driver
● Enjoy a hassle-free, safe and easy installation
● Applications
● Replaces T8/T12 fluorescent lamps
● Warehouses, factories & food warehouses
● Supermarket, shopping malls, office
● Home, hotel, parking lot, garage, etc
| Specifications | |||||
| Model | length | Power | Led type | Lumens (lm) ±10% | Package |
| LY-T5SL600-15W | 2ft/600mm | 15W | SMD2835 | 1650 - 1800 | 710*260*180 (mm) 20pcs/ctn |
| LY-T5SL900-25W | 3ft/900mm | 25W | SMD2835 | 2750 - 3000 | 1015*260*180 (mm) 20pcs/ctn |
| LY-T5SL1200-30W | 4ft/1200mm | 30W | SMD2835 | 3300 - 3600 | 1310*260*180 (mm) 20pcs/ctn |
| LY-T5SL1200-40W | 4ft/1200mm | 40W | SMD2835 | 4400 - 4800 | 1310*260*180 (mm) 20pcs/ctn |
| LY-T5SL1500-40W | 5ft/1500mm | 40W | SMD2835 | 4400 - 4800 | 1645*210*180 (mm) 16pcs/ctn |
| LY-T5SL1800-44W | 6ft/1800mm | 44W | SMD2835 | 4840 - 5280 | 1945*210*180 (mm) 16pcs/ctn |
| LY-T5SL2400-60W | 8ft/2400mm | 60W | SMD2835 | 6600 - 7200 | 2445*160*146 (mm) 9pcs/ctn |
● Options
● Functions: Standard version / Triac dimmable / ON-OFF switch
● Connection type: Introductory cable / M-F connection / Rear power supply
● Extension cable: power cable with plug
● Installation type: standard clip/magnetic clip/hanging sets
● Cover: Milky / Clear
● Product line drawing (Size:mm) ● Light distribution curve
A 250mm power cable, a 250mm connection cable, a small plug, clips and screws...
(The length of the power cord or connection cable can be customized)
● installation
● To avoid electric shock, maintenance and installation should only be performed by a professional electrician
● Please use it in the correct input power range
● Do not use in the outdoor environment
● Before installation, turn off the power to make sure safety
● Follow the diagram for below for proper installation
